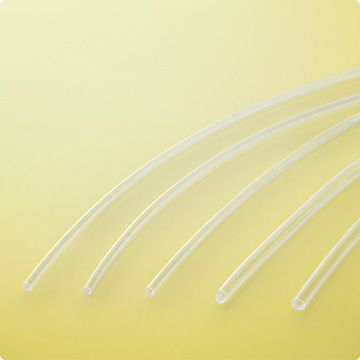

SUMITUBE™ V (600V)

CatalogNo.835

[105℃ rating, transparent flame-retarded heatshrinkable tubing]
UL/CSA recognized

■ UL (UL/cULus) recognized
■ Flame-retarded
■ Transparent
✔RoHS directive 10 substances

  • UL
  • PSE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement for termination and joints of electric wire
    ■ Fixing and protection for cable markers
    ■ Insulation and protection of resistors and capacitors

PDF download

Basic Properties

Category Heat shrink tubing
Material Flexible flame-retarded polyvinyl chloride
Flammability Flame Retarded

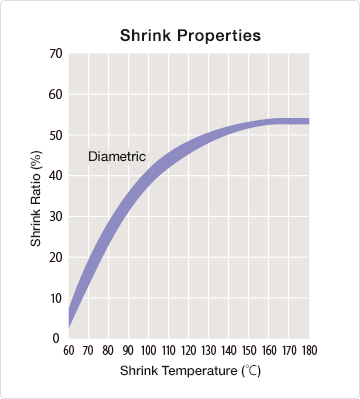

Shrink ratio min. 50%
Longitudinal change min. -30%
Continuous operating temperature -30 to 105℃
Specifications/Approvals UL224
　　File No. E48762 Catalog No. 835 Rating temperature: 105℃
　　Rating voltage: 600V Flammability: VW-1
Electrical Appliance and Material Safety Law (Japan)
Flammability rating (-F-) test registration No.: F-STS3-001 to F-STS3-008
Marking on Surface 105℃ VW-1 SUMITOMO-K SUMITUBE V CAT 835 -F-
Available colors Clear
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali
○ ○ ○ △ △ △

◎：Very good　○：Good　△：Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength (before aging)
Tensile strength (after aging)
Elongation (before aging)
Elongation (after aging)
Deformation
Heat shock
Cold bend		 min. 10.4MPa
136℃ x 7 days, min. 7.3MPa
min. 100%
136℃ x 7 days, min. 100%
131℃ x 1 hour, max. 35%
180℃ x 4 hours, no crack
-30℃ x 1 hour, no crack		 27.7MPa
29.0MPa
340%
320%
27%
Pass
Pass
Electrical Dielectric withstand (before aging)
Dielectric withstand (after aging)
Dielectric breakdown (before aging)
Dielectric breakdown (after aging)
Volume resistivity		 AC2.5kV x 60 sec., no breakdown
136℃ x 7 days, AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
136℃ x 7 days, min. 50% of original and min. AC2.5kV
min. 1.0 x 1010Ω・cm		 Pass
Pass
17.5kV
Pass
5.3 x 1012Ω・cm
Chemical Corrosion against bare copper

Stability against copper

Flammability		 136℃ x 7 days, no corrosion after leaving
under 95% humidity, 23℃ x 24 hours
136℃ x 7 days, elongation min. 70%
after leaving under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass VW-1
Pass

300%
Pass

* For reference use only

Sizes

Trade size（inch） As supplied（mm） After recovered（mm） Unit length（min.）（m）
Inside diameter＊（min.） Wall thickness（nom.） Inside diameter（max.） Wall thickness（nom.）
3/64 1.20 0.20 0.60 0.44 100
1/16 1.60 0.20 0.80 0.44 100
3/32 2.40 0.25 1.20 0.56 100
1/8 3.20 0.25 1.60 0.56 100
3/16 4.80 0.25 2.40 0.56 100
1/4 6.4 0.25 3.20 0.56 50
3/8 9.5 0.25 4.80 0.56 50
1/2 12.7 0.25 6.4 0.56 50
3/4 19.1 0.30 9.5 0.69 50
1 25.4 0.35 12.7 0.77 50
  • *: Actual inside diameter is 20% larger than above
  • Tube storage conditions and natural shrinkage of tubes:
    Due to the characteristics of its raw material, polyvinyl chloride, SUMITUBE V tends to start shrinking when heated above 40℃. Please store this product in a cool dark place away from direct sunlight.
    Note: SUMITUBE V may crack if heated locally with high heat. Determine the optimal tube heating conditions while checking how the tube shrinks.
