SUMITUBE™ LB

CatalogNo.813

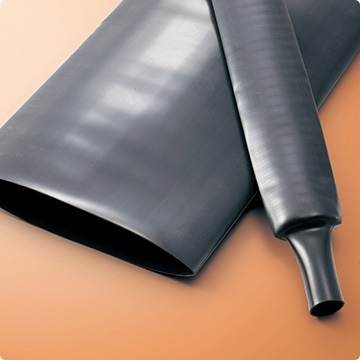

[Large diameter flame-retarded heat-shrinkable tubing]

■ Large diameter and thick wall
■ Flame-retarded (PBDE/PBB-free)
✔RoHS directive 10 substances

■ Electrical insulation for busbars
■ Insulation and protection for metal sleeves

Category	Heat shrink tubing
Material	Irradiated cross-linked flexible flame-retarded polyolefin
Flammability	Flame Retarded

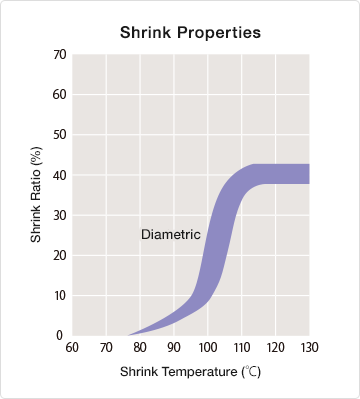

Shrink temperature	min. 115℃
Shrink ratio	Approx. 35%
Longitudinal change	min. -20%
Continuous operating temperature	-45 to 120℃
Specifications/Approvals	SFP standard (RE4-2782)
Marking on Surface	―
Available colors	Black (Color is in pastel tone)
Flexibility	Flexible
Environmental Compliance	RoHS,ELV
Industry	Construction machinery,Industrial machinery,Electronics,Power supply / Communication

Gasoline	Gas oil	Lubricant	Alcohol	Acid	Alkali
○	○	○	◎	◎	◎

Gasoline

Gas oil

Lubricant

Alcohol

Acid

Alkali

○

◎

Features

Properties	Items	Requirements	Typical values*1
Mechanical	Tensile strength Elongation Specific gravity Hardness (Shore D)	min. 10.4MPa min. 200% ― ―	18.6MPa 454% 1.03 42
Electrical	Dielectric withstand Volume resistivity	AC2.5kV x 60 sec., no breakdown min. 1.0 x 10¹⁴Ω・cm	Pass 1.1 x 10¹⁷Ω・cm
Chemical	Water absorption Flammability	23℃ x 24 hours, max. 0.30% Flame-retarded (by FMVSS method*2)	0.15% Pass

Properties

Items

Requirements

Typical values*1

Mechanical

Tensile strength
Elongation
Specific gravity
Hardness (Shore D)

min. 10.4MPa
min. 200%
―
―

18.6MPa
454%
1.03
42

Electrical

Dielectric withstand
Volume resistivity

AC2.5kV x 60 sec., no breakdown
min. 1.0 x 10¹⁴Ω・cm

Pass
1.1 x 10¹⁷Ω・cm

Chemical

Water absorption
Flammability

23℃ x 24 hours, max. 0.30%
Flame-retarded (by FMVSS method*2)

0.15%
Pass

*1: For reference use only *2: FMVSS = Federal Motor Vehicle Safety Standard (regulation in the U.S.A.)
