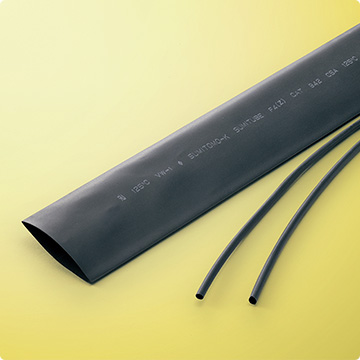

SUMITUBE™ F4 (Z)

CatalogNo.942

[125℃ rating, flame-retarded heat-shrinkable tubing]
UL/CSA recognized

■ UL/CSA recognized
■ Thin wall, quick shrinkage
■ Flexible
■ Flame-retarded (PBDE/PBB-free)
✔RoHS directive 10 substances

  • UL
  • CSA
  • PSE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement for termination and joints of electric wire
    ■ Color identification and bundling for electric wires
    ■ Insulation and protection of resistors and capacitors

PDF download

Basic Properties

Category Heat shrink tubing
Material Irradiated cross-linked flexible flame-retarded polyolefin
Flammability Flame Retarded

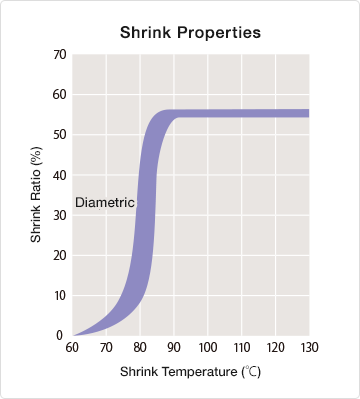

Shrink temperature min. 90℃
Shrink ratio min. 50%
Longitudinal change min. -15%
Continuous operating temperature -55 to 125℃
Specifications/Approvals UL224
　　File No. E75077 Catalog No. SUMITUBE™ F4 (Z) or 942
　　Rating temperature: 125℃ Rating voltage: 300V Flammability: VW-1
CSA C22.2 No. 198.1
　　File No. LR33298
　　Rating temperature: 125℃ Rating voltage: 150V Flammability: VW-1
Electrical Appliance and Material Safety Law (Japan)
Flammability rating (-F-) test registration No.: F-STS3-009 to F-STS3-012
Marking on Surface Made in Japan:
125℃ VW-1 SUMITOMO-K SUMITUBE F4 (Z) CAT 942 CSA 125℃ VW-1 -F-
Made in China:
125℃ VW-1 SUMITOMO-SZ SUMITUBE F4 (Z) CAT 942 CSA 125℃ VW-1 -F-
Available colors Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Automotive,Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali
△ △ △ ◎ ○ ○

◎：Very good　○：Good　△：Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength (before aging)
Tensile strength (after aging)
Elongation (before aging)
Elongation (after aging)
Heat shock
Cold bend		 min. 10.4MPa
158℃ x 7 days, min. 7.3MPa
min. 200%
158℃ x 7 days, min. 100%
250℃ x 4 hours, no crack
-30℃ x 1 hour, no crack		 15.2MPa
16.0MPa
350%
350%
Pass
Pass
Electrical Dielectric withstand (before aging)
Dielectric withstand (after aging)
Dielectric breakdown (before aging)
Dielectric breakdown (after aging)
Volume resistivity		 AC2.5kV x 60 sec., no breakdown
158℃ x 7 days, AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
158℃ x 7 days, min. 50% of original and min. AC2.5kV
min. 1.0 x 1014Ω・cm		 Pass
Pass
12.6kV
Pass
2.5 x 1016Ω・cm
Chemical Corrosion against bare copper

Stability against copper

Flammability		 158℃ x 7 days, no corrosion after leaving
under 95% humidity, 23℃ x 24 hours
158℃ x 7 days, elongation min. 100%
after leaving under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass VW-1
Pass

342%
Pass

* For reference use only

Sizes

Metric size
Trade size（mm） As supplied（mm） After recovered（mm） Unit length（min.）（m）
Inside diameter Wall thickness（nom.） Inside diameter（max.） Wall thickness（min.）
1×0.1 1.30±0.30 0.10 0.50 0.20 200
1.5×0.1 1.90±0.30 0.10 0.75 0.20 200
2×0.1 2.30±0.30 0.10 1.00 0.20 200
2.5×0.15 2.80±0.30 0.15 1.25 0.25 200
3×0.15 3.30±0.30 0.15 1.50 0.25 200
3.5×0.15 3.80±0.30 0.15 1.75 0.25 200
4×0.15 4.40±0.30 0.15 2.00 0.25 200
5×0.15 5.50±0.30 0.15 2.50 0.25 100
6×0.15 6.5±0.4 0.15 3.00 0.28 100
7×0.15 7.5±0.4 0.15 3.50 0.28 50
8×0.15 8.5±0.4 0.15 4.00 0.28 50
9×0.15 9.5±0.4 0.15 4.50 0.28 50
10×0.15 10.5±0.4 0.15 5.00 0.28 50



Inch size
Trade size（inch） As supplied（mm） After recovered（mm） Unit length（min.）（m）
Inside diameter（min.） Wall thickness（nom.） Inside diameter（max.） Wall thickness（min.）
1/2 13.2±0.5 0.15 6.4 0.28 61
3/4 20.6±0.6 0.18 9.5 0.35 61
1 26.6±0.8 0.20 12.7 0.40 61
