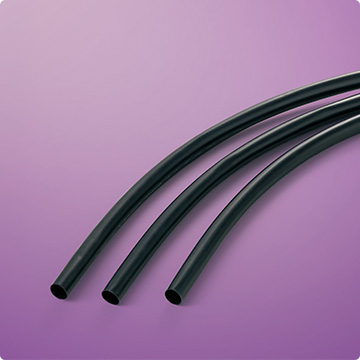

IRRAX™TUBE V2 (600V)
CatalogNo.807,834[Heat-resistant tubing]
UL and CSA recognized
■ Colored: UL224/CSA recognized
Clear: UL224(UL/cULus) recognized
■ Flame-retarded
- UL
- CSA
Applications
- ■ Insulation, protection and reinforcement of terminations and joints of electric wires
■ Identification and bundling of electric wires
Basic Properties
| Category | Heat-resistant tubing (Non-shrinkable) |
|---|---|
| Material | Flexible flame-retarded polyvinyl chloride |
| Flammability | Flame Retarded |
| Continuous operating temperature | -30 to 105℃ |
| Specifications/Approvals |
Colored: UL224 File No.: E48762 Operating temperature: 105℃ Voltage rating: 600V Flammability rating: VW-1 CSA C22.2 No.198.1 File No.: LR33298 Operating temperature: 105℃ Voltage rating: 600V Flammability rating: VW-1 Electrical Appliance and Material Safety Law (Japan) Registration of flammability rating (-F-) (Registration No.: F-STS3-001 to F-STS3-008) Clear: UL224(UL/cULus) File No.: E48762 Operating temperature: 105℃ Voltage rating: 600V Flammability rating: VW-1 Electrical Appliance and Material Safety Law (Japan) Registration of flammability rating (-F-) (Registration No.: F-STS3-001 to F-STS3-008) Note: Specifications and colors differ according to Catalog No. |
| Marking on Surface |
Colored: 105℃ VW-1  SUMITOMO-K IRRAXTUBE V2 CAT 807 CSA 105℃ VW-1 -F-Clear:  105℃ VW-1 SUMITOMO-K IRRAXTUBE V2 CAT 834 -F- |
| Available colors |
Catalog No. 807: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White Catalog No. 834: Clear |
| Flexibility | Flexible |
| Environmental Compliance | RoHS,ELV |
| Industry | Automotive,Construction machinery,Industrial machinery,Electronics |
