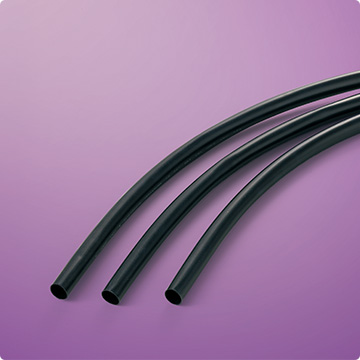

IRRAX™TUBE V2 (300V)

CatalogNo.806,837

[Heat-resistant tubing]
UL and CSA recognized

■ Colored: UL224/CSA recognized
  Clear: UL224(UL/cULus) recognized
■ Flame-retarded

  • UL
  • CSA
  • PSE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement of terminations and joints of electric wires
    ■ Identification and bundling of electric wires

PDF download

Basic Properties

Category Heat-resistant tubing (Non-shrinkable)
Material Flexible flame-retarded polyvinyl chloride
Flammability Flame Retarded
Continuous operating temperature -30 to 105℃
Specifications/Approvals Colored:
UL224
  File No.: E48762 Operating temperature: 105℃
  Voltage rating: 300V Flammability rating: VW-1
CSA C22.2 No.198.1
  File No.: LR33298 Operating temperature: 105℃
  Voltage rating: 300V Flammability rating: VW-1
Electrical Appliance and Material Safety Law (Japan)
  Registration of flammability rating (-F-)
  (Registration No.: F-STS3-001 to F-STS3-008)
Clear:
UL224(UL/cULus)
  File No.: E48762 Operating temperature: 105℃
  Voltage rating: 300V Flammability rating: VW-1
Electrical Appliance and Material Safety Law (Japan)
  Registration of flammability rating (-F-)
  (Registration No.: F-STS3-001 to F-STS3-008)

Note: Specifications and colors differ according to Catalog No.
Marking on Surface Colored:
105℃ VW-1 SUMITOMO-K IRRAXTUBE V2 CAT 806 CSA 105℃ VW-1 -F-
Clear:
105℃ VW-1 SUMITOMO-K IRRAXTUBE V2 CAT 837 -F-
Available colors Catalog No. 806:
Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
Catalog No. 837:
Clear
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Automotive,Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength (before aging)
Tensile strength (after aging)
Elongation (before aging)
Elongation (after aging)
Deformation
Heat shock
Cold bend
min. 10.4MPa
136℃ x 7 days, min. 7.3MPa
min. 100%
136℃ x 7 days, min. 100%
131℃ x 1 hour, max. 35%
180℃ x 4 hours, no crack
-30℃ x 1 hour, no crack
28.6MPa
29.0MPa
310%
320%
25%
Pass
Pass
Electrical Dielectric withstand (before aging)
Dielectric withstand (after aging)
Dielectric breakdown (before aging)
Dielectric breakdown (after aging)
Volume resistivity
AC2.5kV x 60 sec., no breakdown
136℃ x 7 days AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
136℃ x 7 days, min. 50% of original
min. 1.0 x 1010Ω・cm
Pass
Pass
Pass
Pass
4.8 x 1012Ω・cm
Chemical Corrosion against bare copper

Stability against copper

Flammability
136℃ x 7 days, no corrosion
after leaving under 95% humidity, 23℃ x 24 hours
136℃ x 7 days, elongation min. 100%
after leaving under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass VW-1

Pass

190%
Pass

* For reference use only

Sizes

Nominal size Inside diameter(mm) Wall thickness(mm) Unit length(m)
AWG24 0.55±0.10 0.32±0.06 1000 min.
AWG22 0.65±0.10 0.32±0.06 500 min.
AWG20 0.80±0.10 0.40±0.06 500 min.
AWG19 0.90±0.10 0.40±0.06 500 min.
AWG18 1.00±0.10 0.40±0.06 500 min.
AWG17 1.15±0.10 0.40±0.06 250 min.
AWG16 1.30±0.10 0.40±0.06 250 min.
AWG15 1.45±0.10 0.40±0.06 200 min.
AWG14 1.65±0.10 0.40±0.06 200 min.
AWG13 1.80±0.15 0.40±0.06 200 min.
AWG12 2.10±0.15 0.40±0.06 400 min.
AWG11 2.30±0.15 0.40±0.06 400 min.
AWG10 2.60±0.15 0.40±0.06 400 min.
AWG9 2.90±0.15 0.50±0.06 400 min.
AWG8 3.30±0.15 0.50±0.06 400 min.
AWG7 3.70±0.15 0.50±0.06 400 min.
AWG6 4.10±0.20 0.50±0.06 200 min.
AWG5 4.60±0.20 0.50±0.06 200 min.
AWG4 5.20±0.20 0.50±0.06 200 min.
AWG3 5.80±0.20 0.50±0.06 100 min.
AWG2 6.5±0.2 0.50±0.06 100 min.
AWG1 7.3±0.3 0.50±0.06 100 min.
AWG0 8.3±0.3 0.50±0.06 100 min.
  • Longitudinal change: 0±5% (100℃ x 2 hours)
