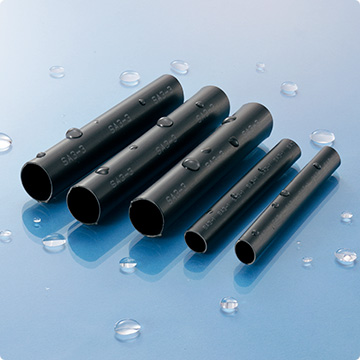

SUMITUBE™ SA3

[Dual wall, flame-retarded heat-shrinkable tubing with meltable adhesive for harness joints of motor vehicles]

■ High shrink ratio and eff ective for waterproofing of multiple harness joints and splices
■ Recovered tube remains in position at elevated temperatures
■ Flame-retarded (PBDE/PBB-free)
■ Abrasion resistant

  • moisture resistance Dual
  • Flame Retarded

Applications

  • ■ Waterproof sealing, insulation and reinforcement for harness joints of motor vehicles/electronic devices
    ■ Waterproof sealing of irregular-shaped components or devices used in automotive environments

PDF download

Basic Properties

Category Heat-shrinkable tubing
Material Outer : Irradiated cross-linked semi-rigid flame-retarded polyolefin
Inner : Meltable adhesive
Flammability Flame Retarded

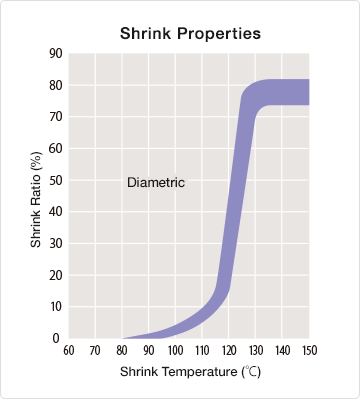

Shrink temperature min. 135℃
Shrink ratio min. 75%
Longitudinal change min. -10%
Continuous operating temperature -40 to 130℃
Specifications/Approvals SFP standard (R4-F307)
Marking on Surface See size table
Available colors Black
Flexibility Semi-rigid
Environmental Compliance RoHS,ELV
Industry Automotive,Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*1
Mechanical Tensile strength*2
Elongation
Heat shock
Heat resistance
Secant modulus
Dynamic cut-through
min. 10.4MPa
min. 300%
225℃ x 4 hours, no crack
130℃ x 7 days, no crack
min. 150MPa
min. 134N
25.8MPa
550%
Pass
Pass
463MPa
529N
Electrical Dielectric strength
Volume resistivity
min. 15kV/mm
min. 1.0 x 1012Ω・cm
20.6kV/mm
9.6 x 1015Ω・cm
Chemical Flammability SAE J1128, self-extinguish within 70 sec. Pass
Splice performance
(on representative
splice configurations)
Testing to SFP internal standard
・Heat aging:        125℃ x 1008 hours
・Heat cycle:        125 cycles, 125℃ (30 minutes) to -40℃ (30 minutes)
・Fluid resistance: 2-hour immersion in: brake fluid, engine coolant,
                           ASTM Reference Oil #3, automatic transmission fluid

Pass
Pass
Pass


*1: For reference use only *2: Calculated by using outer cross section

Sizes

Nominal size(mm) Supplied ID(mm) Recovered ID(mm) Unit length
(min.)(m)
Marking
Inside diameter(min.) Wall thickness*(nom.) Inside diameter(max.) Wall thickness*(min.) Adhesive thickness(nom.)
5.8/1.2 5.80 0.45 1.26 1.20 0.56 1.22 SA3-1
7.5/1.6 7.5 0.60 1.64 1.52 0.76 1.22 SA3-2
10.9/2.4 10.9 0.70 2.40 1.91 1.02 1.22 SA3-3
17.8/4.4 17.8 0.80 4.45 2.41 1.37 1.22 SA3-4
  • *: Including inner adhesive
