SUMITUBE™ O2B2

CatalogNo.890

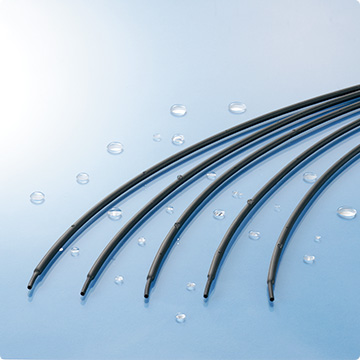

[Dual wall heat-shrinkable tubing with meltable adhesive for fixing and waterproofing of straight-shaped objects]
SAE-AMS/UL/CSA recognized

■ SAE-AMS/UL224/CSA recognized
■ Flame-retarded (PBDE/PBB-free)
■ Flexible
■ Thinner adhesive (than SUMITUBE™ W3B2)

  • UL
  • CSA
  • moisture resistance Dual
  • Flame Retarded

Applications

  • ■ Corrosion protection of pipes
    ■ Waterproof sealing for electronic devices
    ■ Insulation and protection for wire joints

PDF download

Basic Properties

Category Heat-shrinkable tubing
Material Outer : Irradiated cross-linked flexible flame-retarded polyolefin
Inner : Meltable adhesive
Flammability Flame Retarded

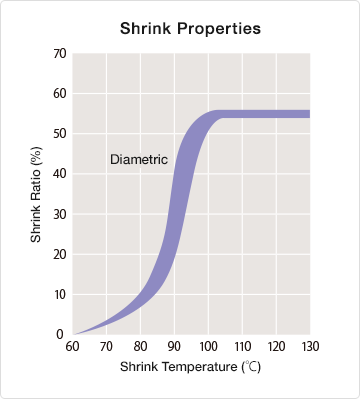

Shrink temperature min. 110℃
Shrink ratio min. 50%
Longitudinal change min. -15%
Continuous operating temperature -55 to 125℃
Specifications/Approvals UL224
  File No. E75077 Catalog No. SUMITUBE™ W3F2 or 843
  Rating temperature: 125℃ Rating voltage: 600V
CSA C22.2 No. 198.1
  File No. LR33298 Rating temperature: 125℃
  Rating voltage: 600V
SAE-AMS-DTL-23053/4 Class 2 (for select sizes)
Marking on Surface
Available colors Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*1
Mechanical Tensile strength      (before aging)*2
Tensile strength      (after aging)*2
Elongation                (before aging)
Elongation                (after aging)
Heat shock
Cold bend
min. 10.4MPa
158℃ x 7 days, min. 7.3MPa
min. 200%
158℃ x 7 days, min. 100%
250℃ x 4 hours, no crack
-30℃ x 1 hour, no crack
16.4MPa
10.5MPa
500%
305%
Pass
Pass
Electrical Dielectric withstand      (before aging)
Dielectric withstand      (after aging)
Dielectric strength         (before aging)
Dielectric strength         (after aging)
Volume resistivity
AC2.5kV x 60 sec., no breakdown
158℃ x 7 days, AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
158℃ x 7 days, min. 50% of original and min. AC2.5kV
min. 1.0 x 1014Ω・cm
Pass
Pass
37.5kV
Pass
2.3 x 1014Ω・cm
Chemical Corrosion against bare copper

Flammability
158℃ x 7 days, no corrosion after leaving
under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass All Tubing Flame Test

Pass
Pass

*1: For reference use only *2: Calculated by using outer cross section

Sizes

Nominal size(inch) Supplied ID(mm) Recovered ID(mm) Unit length(min.)(m)
Inside diameter(min.) Wall thickness*1(nom.) Inside diameter(max.) Wall thickness*1(nom.) Adhesive thickness(nom.)
    1/8  *2 3.20 0.40 1.60 0.70 0.20 1.22
    3/16  *2 4.80 0.40 2.40 0.70 0.20 1.22
1/4 6.4 0.40 3.20 0.75 0.20 1.22
3/8 9.5 0.40 4.80 0.75 0.20 1.22
1/2 12.7 0.40 6.4 0.75 0.20 1.22
    3/4  *2 19.1 0.50 9.5 0.90 0.20 1.22
1 25.4 0.55 12.7 1.10 0.20 1.22
  • *1: Including inner adhesive *2: Sizes do not comply with SAE-AMS-DTL-23053
