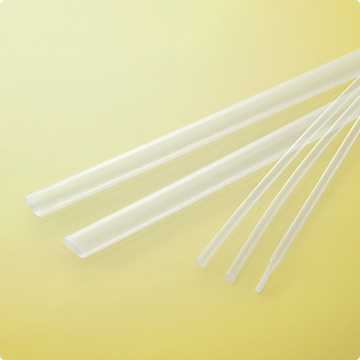

SUMITUBE™ K

CatalogNo.852

[Highly heat/oil/chemical resistant, clear, flame-retarded heat-shrinkable tubing]
SAE-AMS/UL/CSA recognized

■ SAE-AMS/UL/CSA recognized
■ Flame-retarded
■ Transparent colors
■ Thin wall
■ Semi-rigid
■ Highly resistant against oil and chemicals

  • UL
  • CSA
  • PSE
  • SAE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement for termination and joints of electric wire
    ■ Protection for wire and devices which are used under high temperature or exposed to chemicals and oils
    ■ Mechanical protection for metal wire
    ■ Fixing and protection of cable markers
    ■ Insulation and protection of thermistors, resistors and capacitors

PDF download

Basic Properties

Category Heat-shrinkable tubing
Material Irradiated cross-linked semi-rigid flame-retarded PVDF
Flammability Flame Retarded

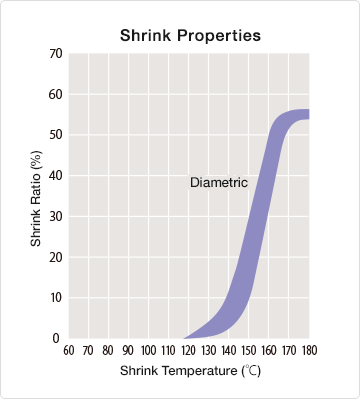

Shrink temperature min. 170℃
Shrink ratio min. 50%
Longitudinal change 0 ±10%
Continuous operating temperature -55 to 175℃
Specifications/Approvals SAE-AMS-DTL-23053/8
UL224
  File No. E75077 Catalog No. SUMITUBE™ K or 852
  Rating temperature: 150℃ Rating voltage: 600V Flammability: VW-1
CSA C22.2 No. 198.1
  File No. LR33298 Rating temperature: 150℃ Rating voltage: 600V
  Flammability: VW-1
Electrical Appliance and Material Safety Law (Japan)
Flammability rating (-F-) test registration No.: F-STS3-017 to F-STS3-020
Marking on Surface
Available colors Black, Red, Green, Blue, White, Clear
Flexibility Semi-rigid
Environmental Compliance RoHS,ELV
Industry Automotive,Military / Aerospace,Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength      (before aging)
Elongation               (before aging)
Elongation               (after aging)
Low temperature flexibility
Heat shock
Specific gravity
min. 34.5MPa
min. 150%
250℃ x 7 days, min. 50%
-55℃ x 4 hours, no crack
300℃ x 4 hours, no crack
max. 1.80
41.0MPa
405%
357%
Pass
Pass
1.75
Electrical Dielectric strength

Volume resistivity
min. 31.5kV/mm (for 1/2 inch and smaller)
min. 23.6kV/mm (for over 1/2 inch)
min. 1.0 x 1013Ω・cm
43.6kV/mm
31.4kV/mm
3.8 x 1015Ω・cm
Chemical Transparent stability
Fluid resistance
  Tensile strength
  Dielectric strength
Flammability

175℃ x 24 hours, no change
After immersion at 24℃ x 24 hours,
  min. 34.5MPa
  min. 19.7kV/mm
Flame-retarded, pass VW-1

Pass

38.1MPa
28.6kV/mm
Pass

* For reference use only

Sizes

Nominal size(inch) Supplied ID(mm) Recovered ID(mm) Unit length(min.)(m)
Inside diameter(min.) Wall thickness(nom.) Inside diameter(max.) Wall thickness
3/64 1.20 0.10 0.60 0.25±0.05 1.22
1/16 1.60 0.10 0.80 0.25±0.05 1.22
3/32 2.40 0.12 1.20 0.27±0.04 1.22
1/8 3.20 0.12 1.60 0.27±0.04 1.22
3/16 4.80 0.12 2.40 0.27±0.04 1.22
1/4 6.4 0.14 3.20 0.33±0.05 1.22
3/8 9.5 0.14 4.80 0.33±0.05 1.22
1/2 12.7 0.14 6.4 0.33±0.05 1.22
3/4 19.1 0.18 9.5 0.43±0.07 1.22
1 25.4 0.20 12.7 0.48±0.07 1.22
