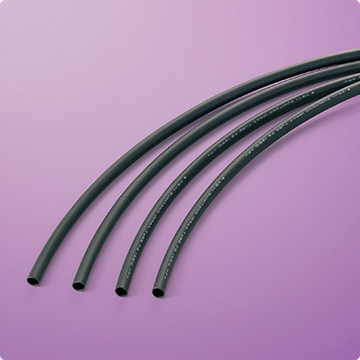

IRRAX™TUBE F2 (UL)

CatalogNo.715,845

[Flexible heat-resistant tubing compliant with Electrical Appliance and Material Safety Law]
UL recognized

■ Flexible
■ Flame-retarded (PBDE/PBB-free)

  • UL
  • PSE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement of terminations and joints of electric wires
    ■ Identification and bundling of electric wires

PDF download

Basic Properties

Category Heat-resistant tubing (Non-shrinkable)
Material Cross-linked flexible flame-retarded polyolefin
Flammability Flame Retarded
Continuous operating temperature -55 to 125℃
Specifications/Approvals UL224 For sizes AWG24 to AWG18 (Catalog No. 715)
  File No.: E70631
  Flammability rating: VW-1
UL224 For sizes bigger than AWG17 (Catalog No. 845)
  File No.: E75077
  Operating temperature: 125℃
  Voltage rating: 600V
  Flammability rating: VW-1
Electrical Appliance and Material Safety Law (Japan)
  Operating temperature 125℃ (provisional registration)
  (Registration No.: 004CC0176)
Registration of flammability rating (-F-)
  (Registration No.: F-STS3-009 to F-STS3-016)
Marking on Surface For sizes AWG24 to AWG18 (Catalog No. 715)
VW-1 SUMITOMO IRRAXTUBE F2 -F-
For sizes bigger than AWG17 (Catalog No. 845)
VW-1 SUMITOMO IRRAXTUBE F2 125℃ -F-
Available colors Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength (before aging)
Tensile strength (after aging)
Elongation (before aging)
Elongation (after aging)
Heat shock
Cold bend
min. 10.4MPa
158℃ x 7 days, min. 7.3MPa
min. 200%
158℃ x 7 days, min. 100%
250℃ x 4 hours, no crack
-30℃ x 1 hour, no crack
13.2MPa
13.4MPa
325%
350%
Pass
Pass
Electrical Dielectric withstand (before aging)
Dielectric withstand (after aging)
Dielectric breakdown (before aging)
Dielectric breakdown (after aging)
Volume resistivity
AC2.5kV x 60 sec., no breakdown
158℃ x 7 days, AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
158℃ x 7 days, min. 50% of original and min. AC2.5kV
min. 1.0 x 1014Ω・cm
Pass
Pass
19.1kV
Pass
1.6 x 1016Ω・cm
Chemical Corrosion against bare copper

Stability against copper

Flammability
158℃ x 7 days, no corrosion
after leaving under 95% humidity,23℃ x 24 hours
158℃ x 7 days, elongation min. 100%
after leaving under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass VW-1

Pass

325%
Pass

* For reference use only

Sizes

Nominal size Inside diameter(mm) Wall thickness(mm) Unit length(m)
AWG24 0.55±0.10 0.50±0.06 500以上
AWG22 0.65±0.10 0.50±0.06 500以上
AWG20 0.80±0.10 0.50±0.06 500以上
AWG19 0.90±0.10 0.50±0.06 500以上
AWG18 1.00±0.10 0.50±0.06 250以上
AWG17 1.15±0.10 0.62±0.06 250以上
AWG16 1.30±0.10 0.62±0.06 250以上
AWG15 1.45±0.10 0.62±0.06 200以上
AWG14 1.65±0.10 0.62±0.06 200以上
AWG13 1.80±0.15 0.62±0.06 200以上
AWG12 2.10±0.15 0.62±0.06 400以上
AWG11 2.30±0.15 0.62±0.06 400以上
AWG10 2.60±0.15 0.62±0.06 400以上
AWG9 2.90±0.15 0.62±0.06 400以上
AWG8 3.30±0.15 0.62±0.06 400以上
AWG7 3.70±0.15 0.62±0.06 400以上
AWG6 4.10±0.20 0.62±0.06 200以上
AWG5 4.60±0.20 0.62±0.06 200以上
AWG4 5.20±0.20 0.62±0.06 200以上
AWG3 5.80±0.20 0.62±0.06 100以上
AWG2 6.5±0.2 0.62±0.06 100以上
AWG1 7.3±0.3 0.62±0.06 100以上
AWG0 8.3±0.3 0.62±0.06 100以上
  • Longitudinal change: min. -20% (125℃ x 1 minute)
