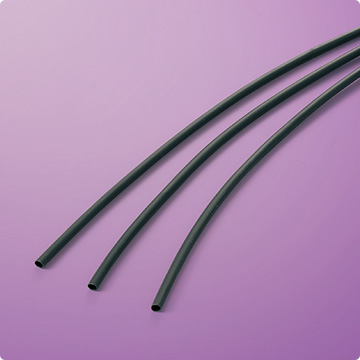

IRRAX™TUBE F2

CatalogNo.901

[Flexible heat-resistant tubing compliant with Electrical Appliance and Material Safety Law]

■ Flexible
■ Flame-retarded (PBDE/PBB-free)

  • PSE
  • moisture resistance Single
  • Flame Retarded

Applications

  • ■ Insulation, protection and reinforcement of terminations and joints of electric wires
    ■ Identification and bundling of electric wires

PDF download

Basic Properties

Category Heat-resistant tubing (Non-shrinkable)
Material Cross-linked flexible flame-retarded polyolefin
Flammability Flame Retarded
Continuous operating temperature -55 to 125℃
Specifications/Approvals Electrical Appliance and Material Safety Law (Japan)
  Operating temperature 125℃ (provisional registration)
  (Registration No.: 004CC0176)
Registration of flammability rating (-F-)
  (Registration No.: F-STS3-009 to F-STS3-016)
Marking on Surface SUMITOMO IRRAX F2 125℃ -F-
Available colors Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
Flexibility Flexible
Environmental Compliance RoHS,ELV
Industry Construction machinery,Industrial machinery,Electronics

Oil/Chemical resistance (room temperature)

Gasoline Gas oil Lubricant Alcohol Acid Alkali

:Very good :Good :Not applicable in some cases

Features

Properties Items Requirements Typical values*
Mechanical Tensile strength (before aging)
Tensile strength (after aging)
Elongation (before aging)
Elongation (after aging)
Heat shock
Cold bend
min. 10.4MPa
158℃ x 7 days, min. 7.3MPa
min. 200%
158℃ x 7 days, min. 100%
250℃ x 4 hours, no crack
-30℃ x 1 hour, no crack
12.1MPa
11.7MPa
300%
325%
Pass
Pass
Electrical Dielectric withstand (before aging)
Dielectric withstand (after aging)
Dielectric breakdown (before aging)
Dielectric breakdown (after aging)
Volume resistivity
AC2.5kV x 60 sec., no breakdown
158℃ x 7 days, AC2.5kV x 60 sec., no breakdown
min. AC2.5kV
158℃ x 7 days, min. 50% of original and min. AC2.5kV
min. 1.0 x 1014Ω・cm
Pass
Pass
19.7kV
Pass
1.3 x 1016Ω・cm
Chemical Corrosion against bare copper

Stability against copper

Flammability
158℃ x 7 days, no corrosion
after leaving under 95% humidity, 23℃ x 24 hours
158℃ x 7 days, elongation min. 100%
after leaving under 95% humidity, 23℃ x 24 hours
Flame-retarded, pass VW-1

Pass

350%
Pass

* For reference use only

Sizes

Nominal size(mm) Inside diameter(mm) Wall thickness(mm) Unit length(m)
1×0.4 1.00±0.10 0.40以上 500以上
1.5×0.4 1.50±0.10 0.40以上 300以上
2×0.4 2.00±0.20 0.40以上 200以上
3×0.4 3.00±0.20 0.40以上 400以上
4×0.4 4.00±0.30 0.40以上 400以上
5×0.4 5.00±0.30 0.40以上 200以上
6×0.4 6.00±0.50 0.40以上 200以上
7×0.4 7.0±0.5 0.40以上 100以上
8×0.4 8.0±0.5 0.40以上 100以上
9×0.4 9.0±0.5 0.40以上 100以上
10×0.4 10.0±0.5 0.40以上 100以上
  • Longitudinal change: min. -20% (125℃ x 1 minute)
